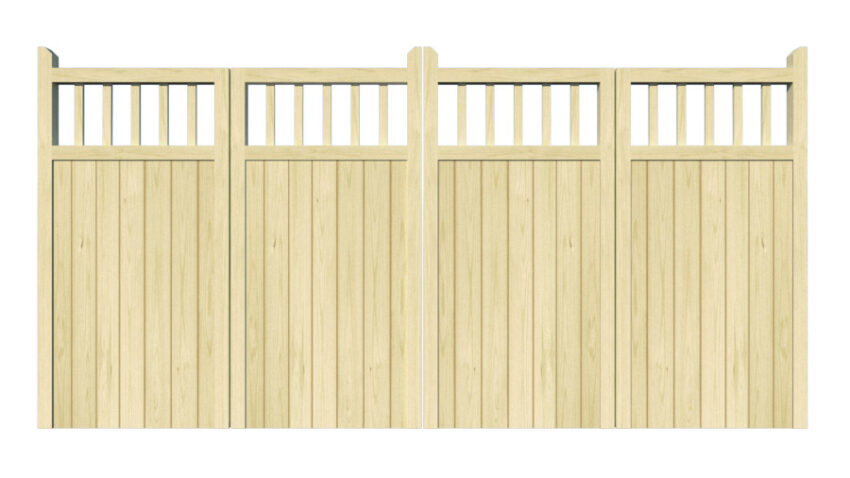

Bi Fold Gates, The Baywood High

£992.00

  • Routered edging
  • Rebated frame
  • Free UK delivery (over £750)
  • 0% Finance available
  • Expertly crafted by hand in the UK
  • Made to any size
  • Mortise, tenon and dowel jointed
  • Stainless steel fixings

Simply take three horizontal measurements…top, middle and bottom. Take SMALLEST width then reduce by:

3 x Leafs – minus 60mm from opening size
4 x Leafs – minus 80mm from opening size
5 x Leafs – minus 100mm from opening size

How-to-measure-wooden driveway-gate-width

Estimated delivery time: Monday 21st April to Friday 25th April.  (Additional 5 – 10 working days if paint/ stain is added.)

Need it faster? Call our team on 0800 6124 965 to discuss our EXPRESS SERVICE.

FREE (mainland) delivery on orders over £750 (excludes Scotland). See “here” for more.

Measuring Guide for Bi-fold gates

Width: Total width of gate all leafs together.

Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .

  • SELECT GATE SIZE

    To work out the size of the gates take the opening width you have between pillars/ posts and deduct the following to allow for hinges. This is assuming the gates are to be opening inwards.

    3 x Leafs - minus 60mm from opening size
    4 x Leafs - minus 80mm from opening size
    5 x Leafs - minus 100mm from opening size

    The above measurements allow 15mm clearance between the edge of gate and post/pillars, 20mm between 2 leafs attached with a strap hinge and 10mm for the clearance in the middle of the gates (where the two gates close in the middle).

    *WIDTH

    Actual gate width for all sides added together.

    *HEIGHT

    Taken to the highest point of the gate. We recommend leaving a gap of 25mm (1") clearance between the bottom edge of the gate and ground level.

    *HOW MANY GATE LEAFS?

    CENTRE OPENING OR PEDESTRIAN OPENING

    *From rear, what side will the one leaf (pedestrian gate) be on?

    *From rear, what side will the one leaf (pedestrian gate) be on?

    HORN DESIGN

    Change the design on the gate horns (left and right side of gate).

    FINISH OPTIONS

    Professionally finished. Please note. Colour may look slightly different on the gate due to screen settings. Knots on the timber and screws will be visible. We do offer free samples on request. To order your free sample, please contact us.

    *ENTER RAL COLOUR CODE

    POSTS

    All posts are 8ft (2m 440mm) in length. Sold online in pairs. If you require single posts, please call to order.

    HINGE SET

    Heavy duty adjustable gate hinge set which includes hinges, drop bolts, brenton bolt, strap hinges, latch and fixings (for gate only). For gates over 10ft wide, we recommend our 36" adjustable set.

    All hinge sets come with a 5 yr guarantee.

    HINGE SET

    Available in either galvanised or galvanised and black finish. Heavy duty adjustable gate hinge set which includes hinges, drop bolts, brenton bolt, strap hinges, latch and fixings (for gate only). For gates over 10ft wide, we recommend our 36" adjustable set.

    All hinge sets come with a 5 yr guarantee.

    GATE LOCK

    Double locking, black and chrome. Includes 5 keys.

How-to-measure-wooden driveway-gate-width

Simply take three horizontal measurements…top, middle and bottom. Take SMALLEST width then reduce by:

3 x Leafs – minus 60mm from opening size
4 x Leafs – minus 80mm from opening size
5 x Leafs – minus 100mm from opening size

Estimated delivery time: Monday 21st April to Friday 25th April.  (Additional 5 – 10 working days if paint/ stain is added.)

Need it faster? Call our team on 0800 6124 965 to discuss our EXPRESS SERVICE.

FREE (mainland) delivery on orders over £750 (excludes Scotland). See “here” for more.

Measuring Guide for Bi-fold gates

Width: Total width of gate all leafs together.

Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .

Need advice?

Call our team on 0800 6124 965
Monday to Friday 9am to 5pm

Trustpilot

0%

Finance Available.

Up to £6000. Spread the costs. Apply at checkout or call for more details.

payments

MADE IN THE UK

Expertly Crafted by Hand

All of our gates are expertly crafted by hand in the UK using time served construction techniques. Unlike others, we do not pin our gates together. We use a traditional framing method. Mortise and tenon joints, along with dowels, are a traditional woodworking technique that provide strong and durable connections between frame members. Combining these joints in a wooden frame enhances stability and longevity. When it comes to securing the cladding to the frame, we only use stainless steel screws. Standard screws will rust leading to the gate’s structure to fail over time. Hardwood is a lot more of a stable timber compared to softwood but will expand and shrink during different stages throughout the year. This is completely normal. To protect this, we rebate the inner legs of the gate. This allows the cladding to expand and contract without causing any damage to the frame and without it being noticeable when looking at the gate.

Finish is in the detail. Routered detailing to the edges of the gate, creating a more polished and refined appearance. This decorative touch enhances the overall visual appeal of the gate, making it stand out as a well-crafted and finished piece.

We welcome and encourage our customers to come and visit our factory and see gates being produced for themselves.

Specification

FRAMED3″ x 3″ (70mm x 70mm) – Mortise, tennon & dowel jointed
REAR BRACING3″ x 2″ (70mm x 47mm)
CLADDINGT, G and V, 19mm Deep x 125mm Wide (nominal)
FIXINGSStainless Steel Screws



Mortise-tenon-and-dowel-jointed-frame
Gate icons

WOODEN BI-FOLD GATES

How to Measure

Measuring for your new gate is actually a very simple process.

number one with circle   If existing posts/ pillars are in place, take three horizontal measurements. Top, middle and bottom as shown below.

How-to-measure-driveway-gate-width-1

Make a note of the SMALLEST width.

** If you are replacing the posts, take a measurement of the whole opening width and reduce size by the width of the posts. For example: Opening width of 3m 460mm minus 2x posts (at 100mm wide each) = 3m 260mm.

number two in green circle

To work out the size of the gates take the opening width you have between pillars/ posts and deduct the following to allow for hinges. This is assuming the gates are to be opening inwards. Please note: All flat top designs are available in 3, 4 or 5 leaf set-up. Bow top or curved top design is only available as a 4 leaf set-up.

3 x Leafs – minus 60mm from opening size
4 x Leafs – minus 80mm from opening size
5 x Leafs – minus 100mm from opening size

The above measurements allow 15mm clearance between the edge of gate and post/pillars, 20mm between 2 leafs attached with a strap hinge and 10mm for the clearance in the middle of the gates (where the two gates close in the middle).

If ordering online and exact measurement not offered. Reduce to closest size. Want it exact? No problem, call our team to order – 0800 6124 965.

WOODEN BI-FOLD GATES

The Beauty of Redwood Pine

Redwood pine is known for its stunning natural beauty. It has a rich, warm color with prominent grain patterns that add elegance and charm to any gate. Its aesthetic appeal often enhances the overall look of the property. It is a durable wood, especially when properly treated and maintained. It has natural resistance to decay, rot, and insect damage, making it ideal for outdoor applications such as gates. With the right finish and care, a redwood pine gate can last for many years.

ENVIRONMENTAL BENEFITS

Redwood pine is a sustainable option. It is harvested from responsibly managed forests, ensuring that new trees are planted to replace those used. Choosing redwood pine for your gate helps support sustainable forestry practices.

Finish is in the detail. Routered detailing to the edges of the gate, creating a more polished and refined appearance. This decorative touch enhances the overall visual appeal of the gate, making it stand out as a well-crafted and finished piece.

We welcome and encourage our customers to come and visit our factory and see gates being produced for themselves.

GATES AND FENCES UK

Optional Extras

Your Gate…Your Colour

Professionally applied. We offer a range of finish options for your gate. Walnut or oak stain or our standard range of paint colours:

  • White
  • Anthracite Grey
  • Black
  • Rosewood
  • Grey/ Blue
  • Chartwell Green
  • Pebble grey

Have it your way. Match your home, any RAL colour finish is available.

Your gate - your colour 2

Adjustable Gate Hinges

Available in either galvanised or galvanised and black finish. Heavy duty adjustable gate hinge set which includes:

  • 4x Adjustable Hinges
  • 4x Hinge Pins
  • 2x Drop bolts
  • Brenton bolt
  • Opening Latch
  • Fixings (for gate only)

For gates over 10ft wide, we recommend our 36″ adjustable set.

All hinge sets come with a 5 yr guarantee.

black_driveway_gate_hinges_adjustable_Set

Engraving

Custom engraving. Add your house name, number and road name etc.

Only available on flat top gates.

Engraving on gates
