HOW TO MEASURE FOR METAL FRAMED GARDEN/ SIDE GATES:

Calculating gate width with existing pillars or posts in place.

Take THREE measurements between the pillars/ posts. Across the top, middle and bottom. Make a note of the SMALLEST measurement.



Measure garden or side gates



Calculate-width-of-metal-framed-garden-or-side-gate



Gates to opens inwards towards property. Hinges mounted on rear of post/ pillar. Back edge of gate will be flush with the rear face of post/ pillar.

REDUCE 50mm (or 2″) from your lowest measurement.



Calculate-width-of-metal-framed-garden-or-side-gate-2



This set up example would be used if placing the gate in an alley way or similar. The allowance on the hinge side is greater and does create a visible see through section.

Reduce 100mm (or 4″) from your lowest measurement.

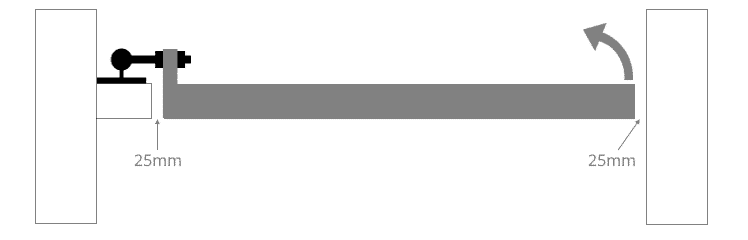

Calculate-width-of-metal-framed-garden-or-side-gate-3



Alternative option if placing gate within two walls would be to mount a post to the wall. This set up would reduce the visible gap down the hinge side.

Reduce 50mm (2″) from your lowest measurement.
