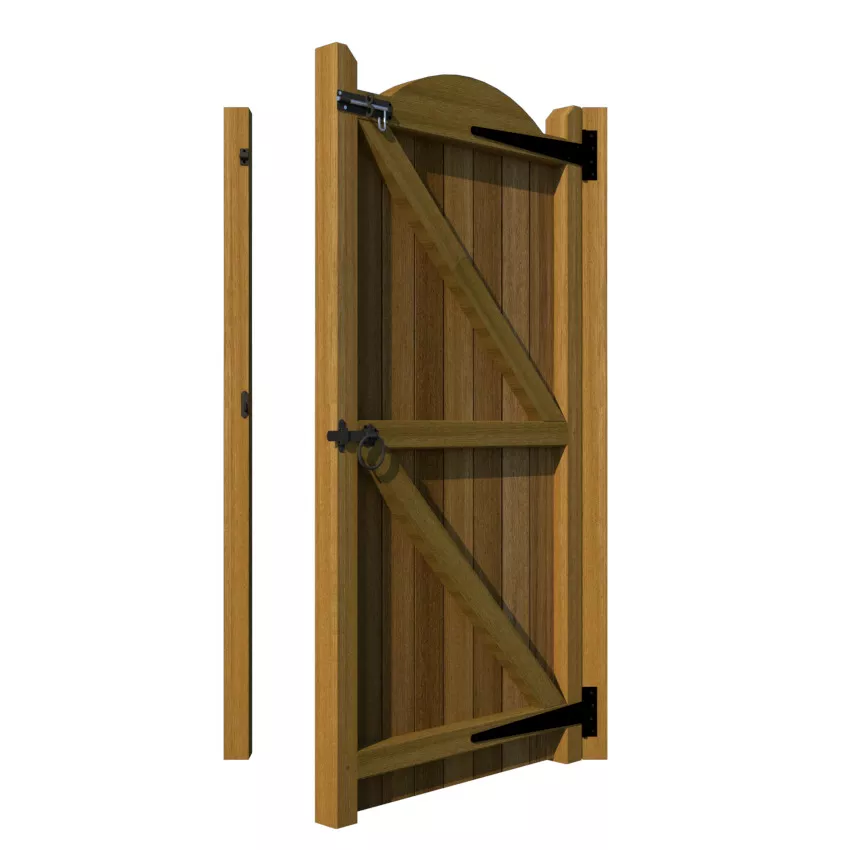

Brookwood Hardwood Side Gate

£829.00

Also available in Softwood Pine or Prime European Oak

  • TO CALCULATE GATE WIDTH:

    Take three horizontal measurements between existing posts or pillars.

    Reduce lowest measurement by 20mm.  This allows for 10mm per side for hinge clearance.

    *Enter Width (mm): 600mm to 1400mm

    Actual gate width for both sides added together. For example, enter 3200mm and receive 2x gate leafs at 1600mm.

    *Enter Height (mm) 1220mm to 2134mm
    For smaller heights, see "Garden Gates"

    Taken to the highest point of the gate.

    *Select Hinge Side

    Looking towards the rear of the gate, would the hinges be on the left or right hand side?

    *Select Horn Design

    Change the design on the side and centre gate horns.

    Finish Options

    Professionally finished. Price adjusts depending on gate size.

    *Enter RAL Colour

    Hinge Set

    Complete side gate hinge sets which include 2 x hinges, ring latch, brenton bolt and fixings. 5 yr guarantee.

    Posts

    Sold in pairs at 8ft long. To purchase single posts, please call.

    Keyed Locks

  • Add some POWER to your side gate

    Add automation to your pedestrian/ side gate. Neatly mounted to the top corner of the gate. Provides easy access to your area with the benefit of adding additional security when used with an electronic mag lock. 24v system capable of opening gates up to 1.2m (4ft) wide - call to order if over 1.2m wide)

    Other customers also purchased

    *

Black Friday Sale Event

15% Off Sitewide + Free Delivery (excludes Scotland). Use code: BF15 at checkout

Need advice?

Call our team on 0800 6124 965
Monday to Friday 8am to 5pm
Email: [email protected]

MADE IN THE UK

Expertly Crafted by Hand

All of our gates are expertly crafted by hand in the UK using time served construction techniques. Unlike others, we do not pin our gates together. We use a traditional framing method. Mortise and tenon joints, along with dowels, are a traditional woodworking technique that provide strong and durable connections between frame members. Combining these joints in a wooden frame enhances stability and longevity. When it comes to securing the cladding to the frame, we only use stainless steel screws. Standard screws will rust leading to the gate’s structure to fail over time. Hardwood is a lot more of a stable timber compared to softwood but will expand and shrink during different stages throughout the year. This is completely normal. To protect this, we rebate the inner legs of the gate. This allows the cladding to expand and contract without causing any damage to the frame and without it being noticeable when looking at the gate.

Finish is in the detail. Routered detailing to the edges of the gate, creating a more polished and refined appearance. This decorative touch enhances the overall visual appeal of the gate, making it stand out as a well-crafted and finished piece.

We welcome and encourage our customers to come and visit our factory and see gates being produced for themselves.

Specification

FRAMED3″ x 3″ (70mm x 70mm) – Mortise, tennon & dowel jointed
REAR BRACING3″ x 2″ (70mm x 47mm)
CLADDINGT, G and V, 19mm Deep x 125mm Wide (nominal)
FIXINGSStainless Steel Screws
Hardwood-Gate-Joint-Mortise-and-Tenon-1
Gate icons

SIDE GATES

How to Measure

Measuring for your new gate is actually a very simple process.

number one with circle   If existing posts/ pillars are in place, take three horizontal measurements. Top, middle and bottom as shown below.

Make a note of the SMALLEST width.

** If you are replacing the posts, take a measurement of the whole opening width and reduce size by the width of the posts. For example: Opening width of 1m 260mm minus 2x posts (at 68mm wide each) = 1m 124mm.

number two in green circleReduce the opening width by 20mm. This allows for a gap of 10mm either side for clearance.

Calculate-width-of-wooden-side gate

Take measurement from “Step 1” and reduce by 20mm. This is the actual gate size you need to order.

If ordering online and exact measurement not offered. Reduce to closest size. Want it exact? No problem, call our team to order – 0800 6124 965.

Hardwood Driveway Gate - The Brookwood
Brookwood Driveway Gate

The Brookwood Range

Hardwood Fence Panels designed to compliment our “Brookwood” range.

We offer a matching range of side gates, garden gates, driveway gates, sliding gate and split gates in this design.

Hardwood-Fence-Panels-The-Brookwood
Brookwood Fence Panel
Hardwood Garden Gate - The Brookwood
Brookwood Garden Gate

GATES AND FENCES UK

Optional Extras

Your Gate…Your Colour

Professionally applied. We offer a range of finish options for your gate. Clear oil or our standard range of paint colours:

  • White
  • Anthracite Grey
  • Black
  • Rosewood
  • Grey/ Blue
  • Chartwell Green
  • Pebble grey

Have it your way. Match your home, any RAL colour finish is available.

Your gate - your colour 2

Gate Hinges

Available in either galvanised or galvanised and black finish. Heavy duty adjustable gate hinge set which includes:

  • 2x Hinges
  • Brenton bolt
  • Opening Latch
  • Fixings (for gate only)

All hinge sets come with a 5 yr guarantee.

Gate_Hinge_Tee_Set_GandF

Engraving

Custom engraving. Add your house name, number and road name etc.

Only available on flat top gates.

Engraving on gates

SPECIALIST

MEASUREMENT SERVICE

£89

Or BOOK ONLINE.
Once payment is in, we’ll contact you to discuss

DELIVERY TIMES

Estimated Delivery Time: Week Commencing 1st December.(Plus an additional 1 week if paint/stain is required.)

Need it faster? Call our team on 0800 6124 965 to discuss our EXPRESS SERVICE.

We offer a two man, white glove service on all of our bigger items. For more info, see here.

SIZE GUIDE

Wooden-Driveway-Gate-Outline-showing-measuring

Width: Total width of gate with both leafs together. Example, order 3m 200mm wide, receive 2x 1m 600mm.

Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) . If ordering a bow top or swan neck the height difference from highest point of gate to side with the lower side is 304mm (12″).
