10yr Warranty
on Welds
Crafted by Hand
in the UK
Premium Frame
System
Your Gate
Your Colour!

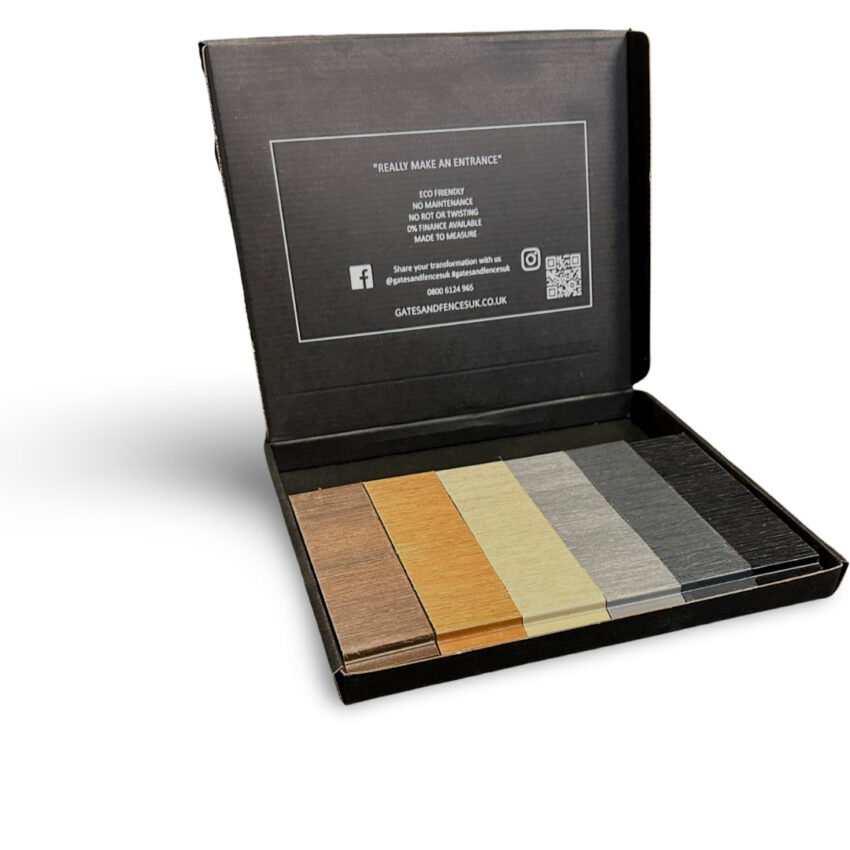

Free Composite Samples (free delivery)
£0.00
- Eco-friendly
- 95% Recycled Materials
- UltraShield Technology
- Advanced UV Protection
- Made to any size
- Free Nationwide Delivery
- Expertly crafted in the UK
- 0% Finance Available
Estimated Delivery Time: Monday 5th May to Friday 9th May.
FREE (mainland) delivery on orders over £750 (excludes Scotland). Orders under this amount are subject to a delivery charge depending on product. See “here” for more.
Simply take three horizontal measurements between existing posts/ pillars…top, middle and bottom. Take SMALLEST width. Then decide how it will hang.
Reduce width by 60mm
Reduce width by 160mm
Width: Total width of gate all leafs together.
Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .
How to Measure
Simply take three horizontal measurements between existing posts/ pillars…top, middle and bottom. Take SMALLEST width. Then decide how it will hang.
Reduce width by 60mm
Reduce width by 160mm
Delivery
Estimated Delivery Time: Monday 5th May to Friday 9th May.
FREE (mainland) delivery on orders over £750 (excludes Scotland). Orders under this amount are subject to a delivery charge depending on product. See “here” for more.
Size Guide
Width: Total width of gate all leafs together.
Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .
Need advice?
Call our team on 0800 6124 965
Monday to Friday 9am to 5pm
0%
Finance Available.
Up to £6000. Spread the costs. Apply at checkout or call for more details.
COMPOSITE BI-FOLD GATES
The Beauty of Composite
Eco-friendly composite bi-fold gate combining a deep metal frame with the latest composite board to create a gate that “really makes an entrance”. Constructed from 95% recycled materials and fully recyclable making it an extremely environmentally friendly gate.
Ultra Shield Technology
Composite that is built differently. With UltraShield, a wipe-clean is all you need to keep your boards looking as good as the day you bought them. With it’s unique UltraShield formula fully capped around every board, there is no worrying about the traditional fading, staining, or mildew issues that often face timber gates. UltraShield is simply the best solution for minimal maintenance and maximum visual impact. Boasting a market leading 10 year colour warranty.
Included with the Gate:
Choice of composite: Anthracite Grey, Ebony (black), Walnut, Teak, Light Grey (stone) and Antique.
Order your free composite samples available here.
- Powder coated frame in black, anthracite grey or white. Option to add any RAL colour for additional charge.
- Locinox lock and handle, drop bolts, wall pins and hinges
- Available Sizes:
Width: from 6ft (each side 3ft) to a massive 20ft (each side 10ft) - Height: from 4ft to 6ft 4″- taken to the highest point of the gate.
- Made to Measure – all gates online can be purchased to the nearest inch, if you do require a more precise size, please contact us. (Unlike others – there is NO additional cost for bespoke, we simply base price on the next size!).
Colour Choice
We offer 6 different boards, Anthracite Grey, Light Grey (Stone), Teak, Antique, Walnut or Ebony (black). The board is capped 360 degrees which will give the board maximum protection against mold/mildew, stains, fading, cracking, cupping, and swelling.
To order your free samples, please see here.
Anthracite Grey
Light Grey (stone)
Teak
Antique
Walnut
Ebony (black)
INFORMATION
How to Measure
Measuring for your new gate is actually a very simple process.
If existing posts/ pillars are in place, take three horizontal measurements. Top, middle and bottom as shown below.
Make a note of the SMALLEST width.
** If you are replacing the posts, take a measurement of the whole opening width and reduce size by the width of the posts. For example: Opening width of 3m 460mm minus 2x posts (at 100mm wide each) = 3m 260mm.
Please note: If purchasing metal posts with your gate, hinge pins will be welded to the post. If not, we supply hinge pin plates for you to fix to existing posts/ pillars.
Next, decide how the gate will hang and reduce width accordingly. The is by far the most popular option.
Option 1: Gate hanging on the rear of posts/ pillars. Main advantage of this set up is the reduced gap that is visible between the gate edge and post.
For a 3 leaf gate reduce 60mm (2 1/4″) from your lowest measurement.
For a 4 leaf gate reduce 70mm (approx. 2 4/5″) from your lowest measurement.
For a 5 leaf gate reduce 80mm (approx. 3 1/4″) from your lowest measurement.
Please note: Figure 1 shows the centre leaf opening to the left. This could also open to the right by fitting the hinge to the right leaf.
Option 2: Gates could open towards driveway. Hinge plates mounted to inner face of post/ pillar. Front edge of gate sits flush with the front edge of post/ pillar.
To calculate gate width:
For a 3 leaf gate reduce 160mm (6 2/5″) from your lowest measurement.
For a 4 leaf gate reduce 170mm (approx. 6 3/4″) from your lowest measurement.
For a 5 leaf gate reduce 180mm (approx. 7 1/4″) from your lowest measurement.
If ordering online and exact measurement not offered. Reduce to closest size. Want it exact? No problem, call our team to order – 0800 6124 965.
INCLUDED WITH YOUR GATE
Added Security
Fully fitted Locinox 40 security handle and lock system. Supplied with 3 keys and available in black or chrome.
Insert Lock with 100% stainless steel mechanism. The Stainless steel and adjustable self-latching bolt combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open.
- Lock mechanism with cover plate against dirt penetration
- Patented “Click-It” system makes tapping tread in the profile unnecessary
- Key-operated self-latching bolt
- Mechanism, hook, frontplate, latchbolt: stainless steel
- Easy left or right changing of the self-latching daybolt
- Stainless steel hook for secure anchoring
- Compatible with all Europrofile cylinders
