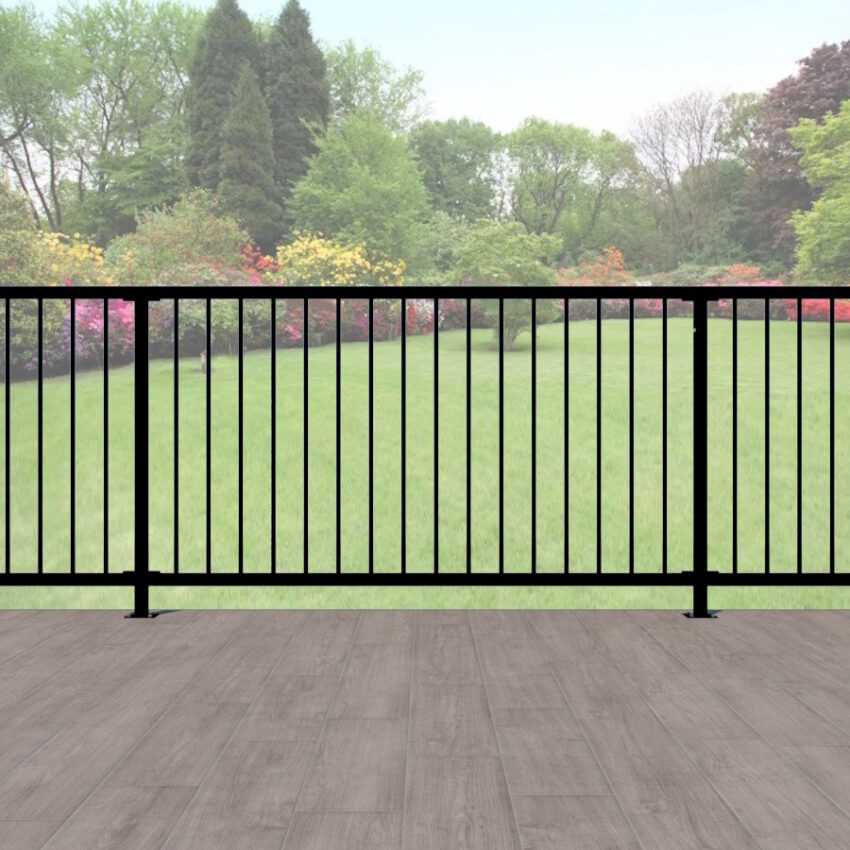

Metal Balustrades, The Cheltenham
£244.00
- Premium Frame System
- Includes Adjustable Hinges
- Free UK delivery (over £750)
- 0% Finance available
- Expertly crafted by hand in the UK
- Made to any size
- 10yr Structural Weld Warranty
- Choice of Finish
* Can be produced as a single piece up to 3m long with a centre post welded in. Please call 0800 6124 965 to discuss.
Estimated Delivery Time: Monday 5th May to Friday 9th May.
FREE (mainland) delivery on orders over £750 (excludes Scotland). Orders under this amount are subject to a delivery charge depending on product. See “here” for more.
Each balustrade has a maximum of 20mm adjustment. The panel has to be smaller than the gap to fit (up to 20mm smaller).
Measuring for a run with posts:
Take a measurement of the complete area from edge to edge. Then, calculate width by number of balustrades.
1x Balustrade: Total area minus 80mm (for 2x posts) = balustrade width.
2x Balustrades: Total area minus 120mm (for 3x posts) divided by 2 = each balustrade width.
3x Balustrades: Total area minus 160mm (for 4x posts) divided by 3 = each balustrade width.
4x Balustrades: Total area minus 200mm (for 5x posts) divided by 4 = each balustrade width.
5x Balustrades: Total area minus 240mm (for 6x posts) divided by 5 = each balustrade width.
And so on.
Please note: Over a run with multiple balustrades we would recommend reducing the width by a minimum 20mm overall to ensure it will fit. Each balustrade has 20mm adjustment but if too big, simply will not fit!
Width: Total width of balustrade.
Height: From bottom edge of balustrade to highest point.
We recommend having a 100mm clearance from bottom of balustrade to floor level. Therefore, if you purchased a balustrade height of 1m, total height would be 1m 100mm.
How to Measure
Each balustrade has a maximum of 20mm adjustment. The panel has to be smaller than the gap to fit (up to 20mm smaller).
Measuring for a run with posts:
Take a measurement of the complete area from edge to edge. Then, calculate width by number of balustrades.
1x Balustrade: Total area minus 80mm (for 2x posts) = balustrade width.
2x Balustrades: Total area minus 120mm (for 3x posts) divided by 2 = each balustrade width.
3x Balustrades: Total area minus 160mm (for 4x posts) divided by 3 = each balustrade width.
4x Balustrades: Total area minus 200mm (for 5x posts) divided by 4 = each balustrade width.
5x Balustrades: Total area minus 240mm (for 6x posts) divided by 5 = each balustrade width.
And so on.
Please note: Over a run with multiple balustrades we would recommend reducing the width by a minimum 20mm overall to ensure it will fit. Each balustrade has 20mm adjustment but if too big, simply will not fit!
Delivery
Estimated Delivery Time: Monday 5th May to Friday 9th May.
FREE (mainland) delivery on orders over £750 (excludes Scotland). Orders under this amount are subject to a delivery charge depending on product. See “here” for more.
Size Guide
Width: Total width of balustrade.
Height: From bottom edge of balustrade to highest point.
We recommend having a 100mm clearance from bottom of balustrade to floor level. Therefore, if you purchased a balustrade height of 1m, total height would be 1m 100mm.
Need advice?
Call our team on 0800 6124 965
Monday to Friday 9am to 5pm
0%
Finance Available.
Up to £6000. Spread the costs. Apply at checkout or call for more details.
METAL BALUSTRADES
Expertly Crafted by Hand
Expertly crafted by hand in the UK to any size. Constructed using our “Premium Frame” system for durability and performance. 10 year workmanship warranty against all welds. Standard powder coat finish included in black (matt or gloss), anthracite grey or white. Different colour? We can finish your metal balustrades in any RAL colour!
Our metal balustrades are designed for exterior or interior use. Multiple mounting options. Between existing wall/ posts, bolt to ground posts, in ground posts (for grass etc) or bolt to face of wall (for raised platforms etc). Please see below for more information.
As standard, gap between ground level and bottom of balustrade is 100mm (4″). If you need this lower or higher, please call our team on 0800 6124 965 to order.
HOW TO MEASURE
Each balustrade has a maximum of 20mm adjustment. The panel has to be smaller than the gap to fit (up to 20mm smaller).
Measuring for a run with posts:
Take a measurement of the complete area from edge to edge. Then, calculate width by number of balustrades.
1x Balustrade: Total area minus 80mm (for 2x posts) = balustrade width.
2x Balustrades: Total area minus 120mm (for 3x posts) divided by 2 = each balustrade width.
3x Balustrades: Total area minus 160mm (for 4x posts) divided by 3 = each balustrade width.
4x Balustrades: Total area minus 200mm (for 5x posts) divided by 4 = each balustrade width.
5x Balustrades: Total area minus 240mm (for 6x posts) divided by 5 = each balustrade width.
And so on.
Please note: Over a run with multiple balustrades we would recommend reducing the width by a minimum 20mm overall to ensure it will fit. Each balustrade has 20mm adjustment but if too big, simply will not fit!
More info?
Building Regulations for Metal Balustrades
None of our balustrade designs have bars more than 99mm apart. As per building regs, we recommend a height of 1100mm if drop to floor is more than 600mm (raised decking, balconies etc). If purchasing bolt to ground posts this would be a balustrade height of 1000mm (as ground floor to bottom edge of balustrade is 100mm). For inerior balustrades, overall height should be between 900mm and 1000mm.
SPECIFICATION
| TOP RAIL | 40mm x 40mm |
| BOTTOM RAIL | 40mm x 40mm |
| INFILL BARS | 16mm Diameter |
Fixing Points
Pre tapped holes in the 4 corners. Balustrade attaches to “L” brackets (if mounting between existing wall/ posts), or, balustrade will attach to pre welded lugs on metal posts (if purchasing posts with your order).
Mounting Options
Various ways our metal balustrades can be mounted. Most popular is on posts either bolted down to ground (for example on concrete or pavers) or in the ground (on grass).
If purchasing metal posts with the balustrades, lugs will be pre welded to the posts ready to fix the balustrade to the post. There are three different post types. Start/ end post, centre/ run post and corner post. These are all available as bolt down posts or below ground posts.
Bolt to Ground
Most popular set up. Each post has pre welded base plates with 4 holes for fixing to flat surface (concrete, timber, composite etc). Fixings to connect balustrade to post are included. Fixings to connect post to floor are not included as floor surface material differs for each customer.
Mounted to Face
Used for raised levels (such as balconies, raised platforms etc). Metal post is fixed to the face of the wall. Option to have straight or cranked posts.
Posts in Ground
Grass, gravel etc. Metal posts are provided longer with no base plates. Hole is dug and metal post is placed in hole and fixed using postcrete (or similar).
SEEMLESS MATCH
Your Balustrade...Your Colour!
Custom RAL colours available on any balustrade
