The Woodchurch - Hardwood Garden Gate £229.00
Back to products
BFT Phobos A40 24v Kit £899.00

Baywood Sliding Hardwood Gate

£1,854.00

When it comes to creating Hardwood Sliding Gate, you can’t beat the effects that Iroko produces. A beautiful, natural hardwood that’s elegant and smooth, highly durable and has a density level of 660kg/m3 making it an extremely strong and long lasting. Iroko is even used for canal locks proving its long lasting features. Constructed by hand using time served techniques such as mortise, tenon and dowel joints. Fitted with a solid bottom timber 70mm x 100mm to allow for the fitting of wheels and a large middle rail to allow for upright fixings and runners.Sliding Gates (as one piece) can only be a maximum width of 11ft 10″ (3.6m). Sizes over this will require the gate to be in two sections that are then bolted together. This is to prevent the gate from twisting out of shape. All Sliding Gates will have a bottom brace to allow for rollers or wheels. Installation is available on this sliding gate – either manual or electric operating system.

  • SELECT GATE SIZE

    WIDTH*

    How to Measure: Simply take the width between the opening posts/ pillars. It's important to remember for a sliding gate to work, one side must have a clearance of "opening width + required overhang". For example. If your opening is 3m you would need a clearance of "opening" (3m) + "overhang" (800mm) = 3m 800mm.

    HEIGHT*

    Taken to the highest point of the gate.

    Whilst looking at the back of the gate, will it slide to the left or to the right?

    HORN DESIGN

    Change the design on the gate horns.

    OPTIONAL EXTRAS YOU MIGHT LIKE

    OIL/ PAINT

    FINISH OPTIONS

    Professionally finished. Please note. Colour may look slightly different on the gate due to screen settings. We do offer free samples on request. To order your free sample, please contact us.

    Please enter RAL colour code.

    ENTER RAL COLOUR CODE*

    SLIDING GATE KIT

    SLIDING GATE KIT

    Sliding gate kit for manual or electric opening system. After years of experience and research, we recommend (and use) this set up for sliding gates. Eliminates any additional fabrication/ welding that may otherwise be required.

    Included:

    2x Metal Receiving Posts: 4" x 4" (100mm x 100mm) 8ft long (2m 400mm). Both have (2x) pre fabricated gate catches attached. Length of 8ft to allow fitment underground, (1) x Support Post: with arm and 2x nylon rollers, (3x) 3m Ground Track, (1x) “U” Rail – 4m, (2x) Wheels.

    WOULD YOU LIKE US TO FIT THE WHEELS?

    Supplied and fitted to your sliding gate. We recommend adding this option. Fitting wheels yourself can be a challenge due to the weight of the gate.

    AUTOMATION

    AUTOMATION KITS

    Supplied to us by BFT, one of the most reliable automation manufacturers out there. All kits come complete with a 2 year manufacturers guarantee.

     *

Check your eligibility

Fast check - won't affect your credit rating.

Need advice? Call our team on 0800 6124 965
Compare
Add to wishlist
SKU: 9276 Category:
Description

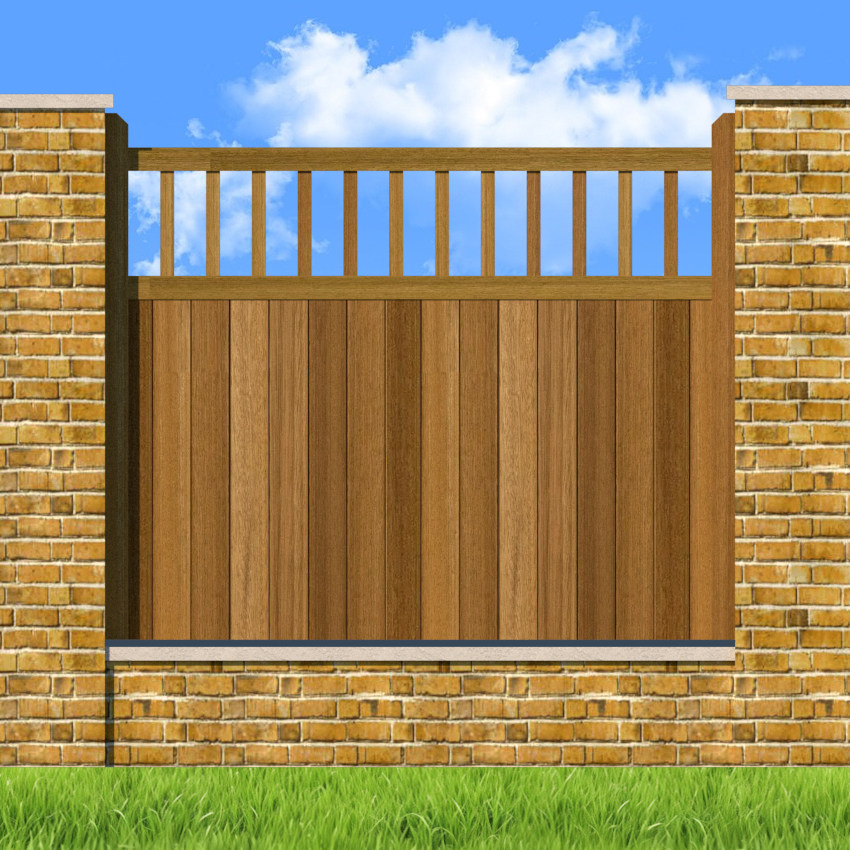

HARDWOOD DRIVEWAY GATES – THE BAYWOOD

When it comes to creating a Hardwood Sliding Gate, you can’t beat the effects that Iroko produces. A beautiful, natural hardwood that’s elegant and smooth, highly durable and has a density level of 660kg/m3 making it an extremely strong and long lasting. Iroko is even used for canal locks proving its long lasting features.Constructed using time served techniques such as mortise, tenon and dowel joints. Fitted with a solid bottom timber 70mm x 100mm to allow for the fitting of wheels and a large middle rail to allow for upright fixings and runners.

Sliding Gates (as one piece) can only be a maximum width of 11ft 10″ (3.6m). Sizes over this will require the gate to be in two sections that are then bolted together. This is to prevent the gate from twisting out of shape. All Sliding Driveway Gates will have a bottom and centre brace (8″ x 2″) to allow for rollers etc flush with bottom edge of gate to allow for wheels to be attached. Installation available on this sliding gate with either a manual or electric operating system.

Need a size that’s not listed? No problem, we can produce your gate to ANY SIZE

Please note:
A Sample of wood used in construction is available on request. Width advertised is total width of gate. For example, widths over 12ft will need to be constructed as two and bolted together (due to risk of “twisting”). Rear view design can differ from image shown depending on the width of gate and/ or height.

Specification

The depth, thickness and quality of materials used in the construction of hardwood gates is a key factor on how the gate will look and perform. We only use the finest Iroko hardwood. This ultimately produces a long lasting gate that really does “make an entrance”.

Rear Bracing: Most gates will be produced with a diagonal brace system. This is sometimes changed to an “A” brace design if needed due to size.

GATE MATERIAL
TIMBER Hardwood Iroko (density level 660kg/ m3)
FRAMED 3″ x 3″ (70mm x 70mm) – Mortise, tennon & dowel jointed
MIDDLE RAIL 8″ x 2″ (194mm x 47mm)
CLADDING T, G and V, 19mm Deep x 125mm Wide (nominal)
FIXINGS Screwed
CONSTRUCTION Mortise, tenon and dowel jointed frames
HANDCRAFTED Made in the UK
SIZE Bespoke available
Why Choose Us?

We are UK’s largest bespoke gate manufacturer. All of our gates are expertly crafted by hand in the UK (not imported from abroad) using traditional, time served construction techniques. Great care and pride is taken to each and every one of our gates to ensure our customers gate is something they can be proud of.

What makes us different?

Compared to our competitors…a lot! Within manufacturing process. Deeper frames and thicker cladding to aid longevity of the gate. Traditional mortise, tenon and dowel jointed frames combined with the use of high grade, PVA adhesive to ensure frames are locked and secured in place. Hidden stainless steel screws to hold the cladding boards in position (not nailed in), and being hidden, increases kerb appeal. To help prevent the gate from moving and twisting, the frames are rebated to let the cladding expand and contract without effecting the gate structure. Finer details are applied such as smooth, routered edges and “V” groove joints to enhance the overall look of the gate. All of our gates can be purchased online to the nearest inch or call our team for an exact width measurement.

The process

So you’ve picked your gate, selected your sizes and ordered it online (or over the phone)…what happens next? Something we are quite proud of (and our customers love!). Once a customer has ordered and paid for their gate they go into our notification system. Customers are notified on every step during the gate production process via email and/ or text message. This includes when it’s in being cut, put together, QC (quality control), finish and delivery. Each of our production departments have scanners. Once they scan a product, the customer is notified of the update immediately.

Delivery

If you’ve ordered a smaller gate, a one man delivery service is used. For larger gates, a two man service is used. In any case, the customer does not need to help during delivery as we have it covered. You’ll be given a delivery date and time slot closer to the time. Feel free to call us and arrange alternative dates if needed.

The gate will arrive extremely well wrapped. ALL packaging used is fully recyclable so please dispose of this correctly.

Delivery

All products are made on order. As such, delivery times can go up and down depending on order volume. We delivery across the whole of the UK (mainland only – please call if Isle of Wight etc).

Wooden Gates (inc Garage Doors): Week commencing 8th of Janurary. (If adding a stain or paint finish, please allow a further 5 days.)

Composite Gates: Week commencing 22nd of January.

Metal and Metal Infill Gates: Week commencing 22nd of January.

Metal Railings and Ballustrades: Week commencing 22nd of January.

Fence Panels: 7 to 14 days

Accessories (automation kits, intercoms etc): 1 to 2 working days.

This is a week commencing date and can therefore be any day from the 22nd till the 29th of Janurary. For a more accurate time, please call our team on 0800 6124 965.

Need it faster? Call our team to discuss our Express Service. We can provide wooden gates, unstained in as little as 5 days.

DELIVERY CHARGES:

SPECIAL OFFER: Free Delivery on orders over £750 – save up to £199

  • Garden Gates: £19
  • Side/ Pedestrian Gates: £29
  • Fence Panels & Railings: £29 (one off charge not per panel)
  • Driveway Gates (softwood): £49
  • Driveway Gates (Hardwood): £99
  • Metal Framed Driveway Gates: £199
  • Sliding Gates: £199
  • Sliding Gate Kit (if purchased without a gate): £99
