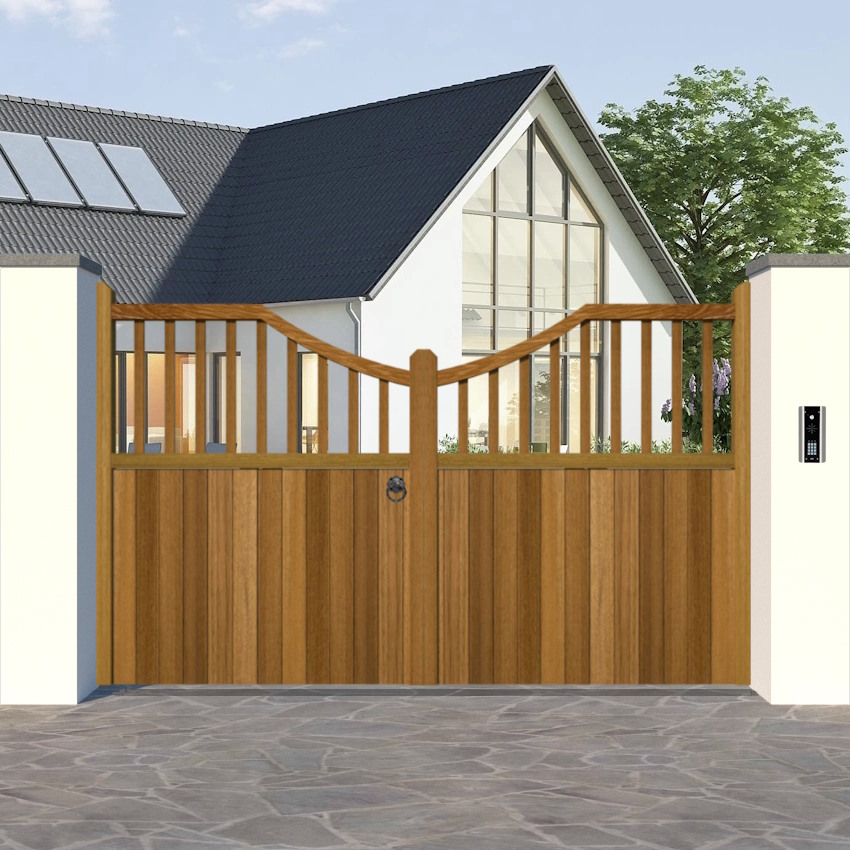

Hinchleywood Hardwood Driveway Gates

£1,789.00

  • Routered edging
  • Rebated frame
  • Free UK delivery (over £750)
  • 0% Finance available
  • Expertly crafted by hand in the UK
  • Made to any size
  • Mortise, tenon and dowel jointed
  • Stainless steel fixings

Simply take three horizontal measurements…top, middle and bottom. Take SMALLEST width.

Reduce width by 40mm to allow for 15mm per side for hinge clearance and 10mm for centre opening clearance.

How-to-measure-wooden driveway-gate-width

Estimated delivery time: Monday 19th May to Friday 23rd May.  (Additional 5 – 10 working days if paint/ stain is added.)

Need it faster? Call our team on 0800 6124 965 to discuss our EXPRESS SERVICE.

FREE (mainland) delivery on orders over £750 (excludes Scotland). See “here” for more.

Wooden-Driveway-Gate-Outline-showing-measuring

Width: Total width of gate with both leafs together. Example, order 3m 200mm wide, receive 2x 1m 600mm.

Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .

  • SELECT GATE SIZE

    Actual gate width for both sides added together.

    TO CALCULATE GATE WIDTH:

    Take three horizontal measurements between existing posts or pillars.

    Reduce lowest measurement by 40mm (1 1/2").  Find the closest size on the drop down list and select the next size lower.

    *WIDTH

    Total width of all gates added together.

    *HEIGHT

    Taken to the highest point of the gate. We recommend leaving a gap of 25mm (1") clearance between the bottom edge of the gate and ground level.

    *HORN DESIGN

    Change the design on the side and centre gate horns.

    OPTIONAL EXTRAS YOU MIGHT LIKE

    FINISH OPTIONS

    Professionally finished. Please note. Colour may look slightly different on the gate due to screen settings. We do offer free samples on request. To order your free sample, please contact us.

    *ENTER RAL COLOUR CODE

    Please enter RAL colour code.

    POSTS

    All posts are 8ft (2m 440mm) in length (except hardwood). Sold online in pairs. If you require single posts, please call to order.

    HINGE SET

    Available in either galvanised or galvanised and black finish. Heavy duty adjustable gate hinge set which includes hinges, drop bolts, brenton bolt, latch and fixings (for gate only). For gates over 10ft wide, we recommend our 36" adjustable set.

    All hinge sets come with a 5 yr guarantee.

    GATE LOCK

    Double locking, black and chrome. Includes 5 keys.

    Not fitted. Includes fixings and drill bit.

    ADDING AUTOMATION NOW OR IN THE FUTURE?

    Extra support for the gate is needed if planning on automating your gates. This is due to the force of the automation to the gate. Standard rails (over time) will fail. Add either a solid middle rail if attaching automation arms to middle of the gate (also know as above ground automation), or bottom middle rail if using underground automation.

    AUTOMATION KITS

    Supplied to us by BFT, one of the most reliable automation manufacturers out there. All kits come complete with a 2 year manufacturers guarantee.

    *

How-to-measure-wooden driveway-gate-width

Simply take three horizontal measurements…top, middle and bottom. Take SMALLEST width.

Reduce width by 40mm to allow for 15mm per side for hinge clearance and 10mm for centre opening clearance.

Estimated delivery time: Monday 19th May to Friday 23rd May.  (Additional 5 – 10 working days if paint/ stain is added.)

Need it faster? Call our team on 0800 6124 965 to discuss our EXPRESS SERVICE.

FREE (mainland) delivery on orders over £750 (excludes Scotland). See “here” for more.

Wooden-Driveway-Gate-Outline-showing-measuring

Width: Total width of gate with both leafs together. Example, order 3m 200mm wide, receive 2x 1m 600mm.

Height: Taken from lowest to highest point of the gate including the horns. We recommend a ground clearance from floor to bottom of gate of 50mm (2″) .

Need advice?

Call our team on 0800 6124 965
Monday to Friday 9am to 5pm

Trustpilot

0%

Finance Available.

Up to £6000. Spread the costs. Apply at checkout or call for more details.

payments

HARDWOOD DRIVEWAY GATES

Expertly Crafted by Hand

Iroko hardwood timber comes from the Milicia excelsa tree and is commonly known for it’s warm and attractive appearance. Featuring a golden to dark brown color with interlocked grain patterns. As it ages, it tends to darken, developing a rich patina that adds to its aesthetic appeal.

With natural weather-resistant properties, which make it ideal for outdoor use. It can withstand exposure to different weather conditions, including rain, sun, and humidity, without significant deterioration. This makes it a preferred material for outdoor gates.

Overall, Iroko hardwood timber’s beauty and benefits make it a popular choice for a variety of applications where strength, durability, and an appealing aesthetic are essential considerations.

Iroko is a strong and dense hardwood, making it suitable for heavy-duty applications. Its strength is comparable to teak, making it a reliable choice for construction and woodworking projects that require robust materials.

Specification

FRAMED3″ x 3″ (70mm x 70mm) – Mortise, tennon & dowel jointed
REAR BRACING3″ x 2″ (70mm x 47mm)
CLADDINGT, G and V, 19mm Deep x 125mm Wide (nominal)
FIXINGSStainless Steel Screws



Hardwood-Gate-Joint-Mortise-and-Tenon-1
Gate icons

HARDWOOD DRIVEWAY GATES

How to Measure

Measuring for your new gate is actually a very simple process.

number one with circle   If existing posts/ pillars are in place, take three horizontal measurements. Top, middle and bottom as shown below.

How-to-measure-driveway-gate-width-1

Make a note of the SMALLEST width.

** If you are replacing the posts, take a measurement of the whole opening width and reduce size by the width of the posts. For example: Opening width of 3m 460mm minus 2x posts (at 100mm wide each) = 3m 260mm.

number two in green circleNext, decide how the gate will hang and reduce width accordingly. The is by far the most popular option. Gate hinges are mounted to the rear of post. A gap of 15mm between edge of gap and post (each side) and a centre gap of 10mm for opening/ closing.

figure-1a-driveway-opening-set-up-example-1

Reduce 40mm off your smallest measurement (from “Step 1”).

If ordering online and exact measurement not offered. Reduce to closest size. Want it exact? No problem, call our team to order – 0800 6124 965.

DOWNLOAD GUIDE
Hardwood Fence Panels - The Hinchleywood - spindle top
Hinchleywood Fence Panel

The Hinchleywood Range

Hardwood Fence Panels designed to compliment our “Hinchleywood” range.

We offer a matching range of side gates, garden gates, driveway gates, sliding gate and split gates in this design.

Hardwood Side Gate - Hinchleywood
Hinchleywood Side Gate
Hardwood Garden Gate - The Hinchleywood
Hinchleywood Garden Gate

HARDWOOD DRIVEWAY GATES

The Beauty of Iroko

Iroko hardwood timber comes from the Milicia excelsa tree and is commonly known for it’s warm and attractive appearance. Featuring a golden to dark brown color with interlocked grain patterns. As it ages, it tends to darken, developing a rich patina that adds to its aesthetic appeal.

With natural weather-resistant properties, which make it ideal for outdoor use. It can withstand exposure to different weather conditions, including rain, sun, and humidity, without significant deterioration. This makes it a preferred material for outdoor gates.

Overall, Iroko hardwood timber’s beauty and benefits make it a popular choice for a variety of applications where strength, durability, and an appealing aesthetic are essential considerations.

Iroko is a strong and dense hardwood, making it suitable for heavy-duty applications. Its strength is comparable to teak, making it a reliable choice for construction and woodworking projects that require robust materials.

Driveway gates in Iroko Hardwood timber swan neck
Hardwood-gates-on-syone-building
Driveway gates in Iroko Hardwood timber 2
Large-hardwood-driveway-gate-The-Berkshire

GATES AND FENCES UK

Optional Extras

Your Gate…Your Colour

Professionally applied. We offer a range of finish options for your gate. Clear oil, standard range of paint colours:

  • White
  • Anthracite Grey
  • Black
  • Rosewood
  • Grey/ Blue
  • Chartwell Green
  • Pebble grey

Have it your way. Match your home, any RAL colour finish is available.

Your gate - your colour 2

Adjustable Gate Hinges

Available in either galvanised or galvanised and black finish. Heavy duty adjustable gate hinge set which includes:

  • 4x Adjustable Hinges
  • 4x Hinge Pins
  • 2x Drop bolts
  • Brenton bolt
  • Opening Latch
  • Fixings (for gate only)

For gates over 10ft wide, we recommend our 36″ adjustable set.

All hinge sets come with a 5 yr guarantee.

black_driveway_gate_hinges_adjustable_Set

Engraving

Custom engraving. Add your house name, number and road name etc.

Only available on flat top gates.

Engraving on gates

Gate Automation

Add some power!

Above ground kit or below ground kit available. All systems are backed with a manufacturer warranty.

If you are thinking of adding automation to your gate in the future, order your gate with the centre rail, automation ready.

Phobos_BT_Automation Kit
