HOW TO FIT METAL FRAMED DRIVEWAY GATES:

Installing a new metal framed driveway gate is usually more straight forward than expected, and most can be carried out by competent  DIYers. The main issue that needs to be checked is ensuring the right size gate width/ height has been ordered.

As standard, over 90% of metal framed driveway gates are installed using the below example:

How to fit metal framed driveway gates

Tools:

  • Spirit Level
  • Hammer Drill
  • Hammer
  • Spanner
  • Screwdriver
  • Pencil
  • Tape Measure

Fixing to Existing Pillar or Wall: As standard (if no posts are selected on order), you will receive 4 x hinge plates along with 4 x adjustable bolts that connects the gate to the plate.

  • First, a clearance is required between ground level and the bottom edge of gate. We recommend allowing 50mm (or 2″) on a level drive although this may need to be increased if the driveway rises towards the property.
  • Next, the hinge plates. These have to go on the internal face of the pillar/ wall (as shown above). It is crucial you check the structural quality of the pillar/ wall to ensure the structure is capable of holding the weight of the gate.
  • Remove one of the nuts off the adjustable bolts. Place the bolt through the bottom eye hole on gate (1).
  • Take a measurement from bottom of bolt eye to ground level (2). Add an additional 50mm to this measurement (for bottom gate clearance).
Adjustable bolt through eye

Now to position the first bottom hinge plate.

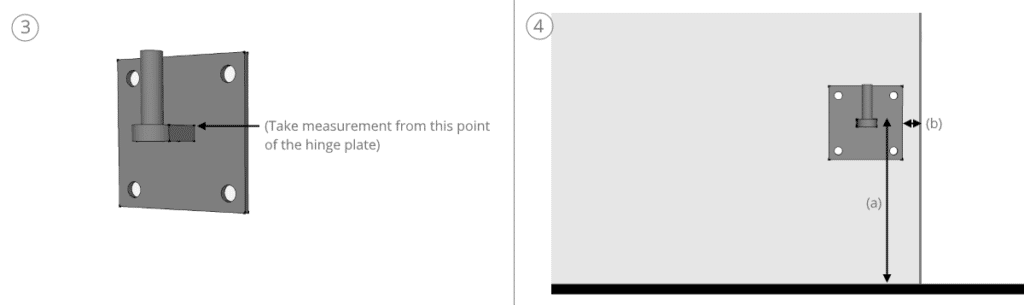

  • Height (a): Use the point of the hinge plate as shown below on figure 3 to mark width. Take the measurement (as shown in figure 2) and add ground clearance (50mm). Mark a line on the top of the hinge plate.
  • Width (b): Come in from the edge of the pillar by 25mm to 50mm. You need this clearance to protect the pillars corner when drilling a hole. Mark one vertical side of the hinge plate.
HEX BOLT AND POST

As we don’t know what material customers are fixing the hinge plates to, we do not supply fixings for them. If into a solid pillar or wall, we would recommend Dewalt Hex Head Blue-Tip Screwbolts – 8 x 100mm or 10 x 100mm. Please note: It is crucial to use the correct fixings due to weight of gate. If unsure, seek professional advice.

  • Use a spirit level to ensure hinge plate is level. Mark holes for hinge plate. Using a corded drill, drill holes and secure hinge plate to wall.

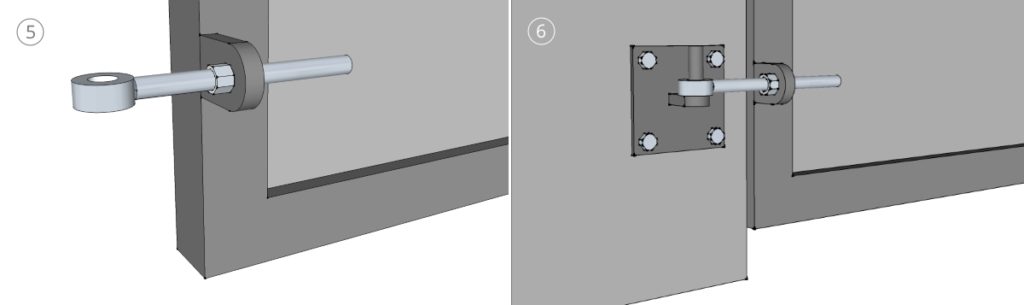

  • Next, we need to mark the position for the top hinge plate. Connect the adjustable bolt to the bottom eye on the gate. Allow some room by moving nut approx 50mm (5). Repeat for the top eye.
  • Place the gate on the bottom hinge (6). To make it easier, place a timber packer under the bottom edge of gate to help support weight whilst getting position.
Placing gate on gate hinge 2

Marking the top hinge plate.

  • First, we need to get the height position of the hinge. With the adjustable bolt connected to the top gate eye, place the gate upright to the pillar and hold in place. Second person, with the hinge plate in their hand, place hinge plate on to the adjustable bolt. Mark the lower edge of hinge plate (7).
  • With a spirit level, line up the top hinge plate with the bottom hinge plate (8).
Mounting driveway gate to hinge
  • Remove gate and fix top hinge to pillar.
  • Repeat above process for the other gate.

Once both gates are in place, adjust the side and centre gaps by altering the two nuts on the adjustable bolt. The most important clearance here is the centre at 10mm. The handle and lock will come already fitted so ensure this works by closing the gate. Once done, adjust the sides so that each side (between pillar and gate edge) is the same (approx. 20mm each side).

The centre of the two gates need to be in line vertically. If the gate is out of line (as shown below), use packers behind the hinge plates until they line up. This will be due to the pillars or posts not being in line.

Adjustable Gate Hinge for Metal Driveway Gates
Gate Out of Line in centre position.

DROP BOLTS

Drop bolts help secure the driveway gate in either an open or closed position. These are already fitted to your gate.

Measure the diameter of the bolt and select a drill bit slightly larger. Set your drill to “hammer” mode. Drill a hole to just past the depth required. Take care with this procedure. It is worth checking that no services run underneath! When complete, check and repeat on the other side. Now fully open the gates to the required position. Repeat the above process so that the drop bolts will hold the gate securely in the open position.

DOWNLOAD HOW TO FIT GUIDE
