Metal Balustrades, The Darlington

£264.00

  • We recommend allowing a gap of 100mm from ground level to bottom edge of balustrade. Therefore, if purchasing for exterior, you would select a height of 1000mm (1000mm + 100mm equals total height of 1m 100mm). For  interior 800mm (800mm + 100mm equals total height of 900mm).

    *WIDTH (in mm)
    500mm to 1830mm

    *HEIGHT (in mm)
    700mm to 1400mm

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    ADD ANOTHER BALUSTRADE?

    *WIDTH (in mm)

    *HEIGHT (in mm)

    Need more than 8? Add the first 8 to basket then come back to product page and add additional balustrades. Alternatively, call our team on 0800 6124 965.

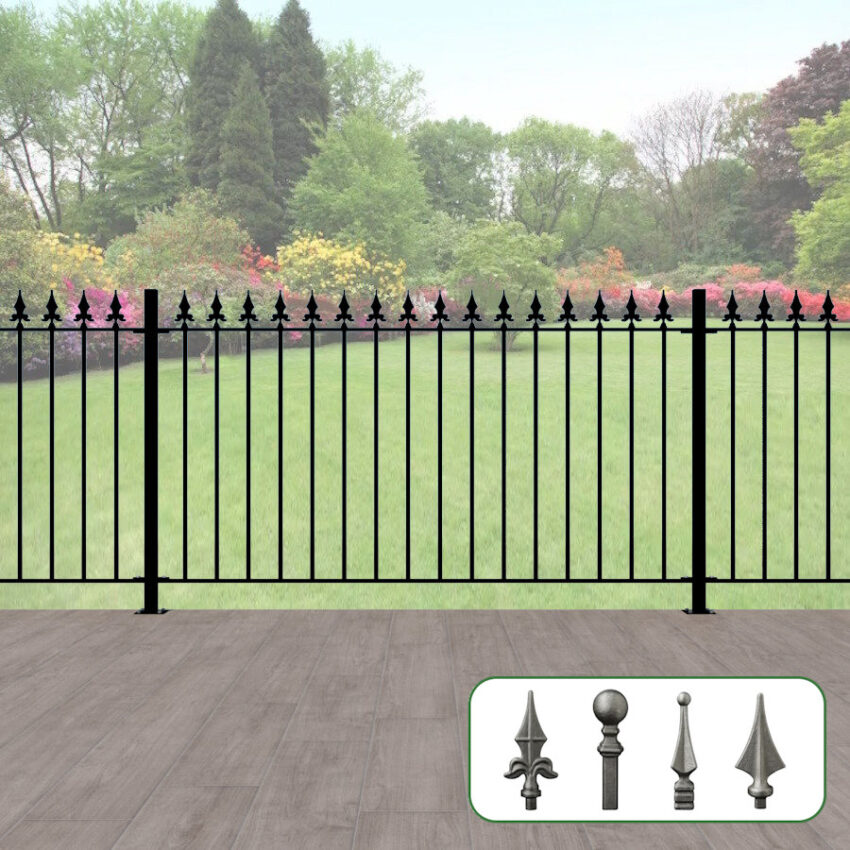

    We offer 4 different designs. Fleur De Lys, Ball Tops, Spearheads or Arrow Tops.

  • *

    Metal posts (if selected) will be matching balustrade colour.

    GLOSS OR MATT

    *ENTER RAL COLOUR CODE

    Please enter RAL colour code.

    ADD LONG LIFE?

    Our long life system provides the ultimate protection against rust and chips. Sand blasted after production then a zinc primer is applied followed by a smoother, thicker top coat.

    Please select number of balustrades you are purchasing.

    SELECT MOUNTING OPTION

    STRAIGHT OR CRANKED POSTS?

    We offer three different post types. Straight post, cranked post (if mounting on face with an overhang) or straight post with crank so that the railings are sat more inwards.

    METAL POSTS BOLTED TO FLOOR

    40mm x 40mm metal bolt down posts. Length of post will be selected balustrade height plus 100mm (recommended clearance between ground level and bottom edge of balustrade).

    METAL POSTS IN GROUND

    40mm x 40mm metal in the ground posts. Length of post will be 700mm longer than selected balustrade height. We recommend setting post 600mm in the ground and allowing a 100mm clearance gap between ground level and bottom edge of balustrade.

    STRAIGHT METAL POST

    40mm x 40mm metal post. Length of post will be 300mm longer than selected balustrade height. This allows for a 100mm gap between ground level and bottom edge of gate and 200mm from ground level to bottom plate where fixing to wall. Secures to face of wall.

    Straight post so can only be used on a flat wall with no overhang from paving slabs etc. Post secures to wall via 4 fixings (we recommend thunder bolts).

    CRANKED METAL POST

    40mm x 40mm metal post. Secures to face of wall. Cranked post so can only be used on a flat wall with no overhang from paving slabs etc. Crank added to set balustrades more inset Floor level to bottom of post is 200mm plus a clearance gap of 100mm between ground level and bottom edge of balustrade. Total length will be selected balustrade height plus 300mm.

    Post secures to wall via fixings (we recommend thunder bolts).

    STRAIGHT WITH CRANK METAL POST

    40mm x 40mm metal post. Secures to face of wall. Crank protrudes 40mm away from wall allowing for overhang from pavers etc. Floor level to bottom of post is 200mm plus a clearance gap of 100mm between floor level and bottom edge of balustrade. Therefore, total length of post will be selected balustrade height plus 300mm.

    Post secures to wall via fixings (we recommend thunder bolts).

Estimated delivery time: Monday 8th July to Friday 12th July.

FREE UK (mainland) delivery on orders over £750. Orders under this amount are subject to a delivery charge depending on product. See "here" for more.

Need advice?

Call our team on 0800 6124 965
Monday to Friday, 9am to 5pm.

Our customers love us...

  • 0% Finance Spread the cost of your new gate interest free.
    Orders over £1000 to £6000. Option available at checkout.
  • 10 year warranty on gates 10 Year warranty on welds
  • Crafted by hand in the UK
  • Premium Frame System "Premium Frame" system
  • Metal Gate Sprayer Your balustrade...your colour!

Product information

Description

Expertly crafted by hand in the UK to any size. Constructed using our “Premium Frame” system for durability and performance. 10 year workmanship warranty against all welds. Standard powder coat finish included in black (matt or gloss), anthracite grey or white. Different colour? We can finish your metal balustrades in any RAL colour!

Our metal balustrades are designed for exterior or interior use. Multiple mounting options. Between existing wall/ posts, bolt to ground posts, in ground posts (for grass etc) or bolt to face of wall (for raised platforms etc). Please see below for more information.

As standard, gap between ground level and bottom of balustrade is 100mm (4″). If you need this lower or higher, please call our team on 0800 6124 965 to order.

How to Measure

Each balustrade has a maximum of 20mm adjustment. The panel has to be smaller than the gap to fit (up to 20mm smaller).

Measuring for a run with posts:

Take a measurement of the complete area from edge to edge. Then, calculate width by number of balustrades.

1x Balustrade: Total area minus 80mm (for 2x posts) = balustrade width.

2x Balustrades: Total area minus 120mm (for 3x posts) divided by 2 = each balustrade width.

3x Balustrades: Total area minus 160mm (for 4x posts) divided by 3 = each balustrade width.

4x Balustrades: Total area minus 200mm (for 5x posts) divided by 4 = each balustrade width.

5x Balustrades: Total area minus 240mm (for 6x posts) divided by 5 = each balustrade width.

And so on.

Please note: Over a run with multiple balustrades we would recommend reducing the width by a minimum 20mm overall to ensure it will fit. Each balustrade has 20mm adjustment but if too big, simply will not fit!

Specification

BOTTOM/ TOP RAIL 40mm x 10mm
MAIN INFILL BARS 16mm
Fleur De Lys 130mm

Fixing Points

Pre tapped holes in the 4 corners. Balustrade attaches to “L” brackets (if mounting between existing wall/ posts), or, balustrade will attach to pre welded lugs on metal posts (if purchasing posts with your order).

Building Regulations for Metal Balustrades

None of our balustrade designs have bars more than 99mm apart. As per building regs, we recommend a height of 1100mm if drop to floor is more than 600mm (raised decking, balconies etc). If purchasing bolt to ground posts this would be a balustrade height of 1000mm (as ground floor to bottom edge of balustrade is 100mm).  For inerior balustrades, overall height should be between 900mm and 1000mm.

Mounting Options

Various ways our metal balustrades can be mounted. Most popular is on posts either bolted down to ground (for example on concrete or pavers) or in the ground (on grass).

If purchasing metal posts with the balustrades, lugs will be pre welded to the posts ready to fix the balustrade to the post. There are three different post types. Start/ end post, centre/ run post and corner post. These are all available as bolt down posts or below ground posts.

Metal Balustrade Mounted to floor 2

Bolt to Ground

Most popular set up. Each post has pre welded base plates with 4 holes for fixing to flat surface (concrete, timber, composite etc). Fixings to connect balustrade to post are included. Fixings to connect post to floor are not included as floor surface material differs for each customer.

Metal Balustrade Mounted to face of wall

Mounted to Face

Used for raised levels (such as balconies, raised platforms etc). Metal post is fixed to the face of the wall. Option to have straight or cranked posts.

Metal Balustrade Mounted to Grass

Posts in Ground

Grass, gravel etc. Metal posts are provided longer with no base plates. Hole is dug and metal post is placed in hole and fixed using postcrete (or similar).

How to Fit Metal Balustrades

Our range of metal balustrades have been designed so that any competent DIY’er can save money by installing it themselves.
Fitting guide for securing bolt down metal posts to hard surface such as timber or composite decking, paving slabs, concrete etc for metal balustrades or railings.

  • DOWNLOAD PDF GUIDE
How to fit bolt down posts for metal balustrades

Position first post. Mark holes and carefully drill suitable hole for fixings. We recommend starting with a pilot hole then move to correct drill size. Fixings to secure post to ground are not included.

Level post and secure to floor

Ensure post is level and secure post using your selected fixings. Measure distance to the second post, level, drill and fix. The distance between the posts can be up to 20mm wider than the ballustrade but for finished look, try not to have a gap of more than 10mm (5mm per side).

Fitting metal balustrades to posts

To make fitting easier, place balustrade between posts on packers (100mm high) and clamp.

Fix balustrade to post

Using fixings supplied, fix balustrade to posts (one fixing per corner).

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Metal Balustrades, The Darlington”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Frequently Asked Questions

When will it be delivered?

DELIVERY TIMES

All products are made on order. As such, delivery times can go up and down depending on order volume. We delivery across the whole of the UK (mainland only – please call if Isle of Wight etc).

Wooden Gates (inc Garage Doors): Monday 17th June to Friday 21st June. (Additional 5 - 10 working days if paint/ stain is added.)

Composite Gates: Monday 8th July to Friday 12th July.

Metal and Metal Infill Gates: Monday 8th July to Friday 12th July.

Metal Railings and Ballustrades: Monday 8th July to Friday 12th July.

Fence Panels: 7 to 14 days

Accessories (automation kits, intercoms etc): 1 to 2 working days.

For a more accurate time, please call our team on 0800 6124 965.

Need it faster? Call our team to discuss our Express Service. We can provide wooden gates, unstained in as little as 5 days.

DELIVERY CHARGES:

SPECIAL OFFER: Free Delivery on orders over £750 – save up to £199

  • Garden Gates: £19
  • Side/ Pedestrian Gates: £29
  • Fence Panels & Railings: £29 (one off charge not per panel)
  • Driveway Gates (softwood): £49
  • Driveway Gates (Hardwood): £99
  • Metal Framed Driveway Gates: £199
  • Sliding Gates: £199
  • Sliding Gate Kit (if purchased without a gate): £99
Can the balustrades be made to measure?

Yes. Not all width’s are the same. You can order online to the millimeter. Minimum width 500mm to a maximum width of 1m 830mm.

What is included?

If mounting between wall, “L” brackets will be included. Each side has approx 20mm adjustment.

Finish. Choice of black, white or anthracite grey. For a longer lasting finish, we recommend upgrading finish to “Longlife”.

What is ``Longlife`` finish?

Our long life system provides the ultimate protection against rust and chips. The gates are sand blasted after production then a zinc primer is applied followed by a smoother, thicker top coat.

Our standard finish will scratch and chip easier resulting in more maintenance and a higher risk of rust spots forming.

Your balustrades...your colour! How do I select any colour?

We are able to paint any railing in any RAL colour. RAL colours are coded so by providing us with the RAL code we can finish your railings to your chosen colour.

Do see all the RAL colours and codes…see https://www.ralcolorchart.com/

Do you offer 0% finance?

Yes. For any product up to £6000.

Zopa Ltd t/a DivideBuy credit agreements are not regulated by the Financial Conduct Authority and do not fall under the jurisdiction of the Financial Ombudsman Service. Credit is available to permanent UK residents aged 18+, subject to status, any missed payments may affect your ability to obtain credit from DivideBuy and other lenders. Please spend responsibly.

What is the warranty?

10 year workmanship warranty. This covers all welds on the railings.

It does not cover rust. Rust can occur when the paint is chipped and the damage not repaired. General maintenance and care is the owners responsibility.

Where is the height taken to?

Taken to the highest point of each railing.

Handcrafted in the UK?

Yes, by our skilled fabricators.

All of our products are crafted by hand from our factory in Devon and sent across the whole of the UK (mainland).

Do you offer installation?

To keep installation cost’s down for the end user, we work closely with a number of gate and railing installation companies throught the UK. This way we are able to recommend a reliable company close to you saving you additional travel expense cost’s.

Call our team to discuss on 0800 6124 965.
