Westgate Composite Side Gate

£889.00

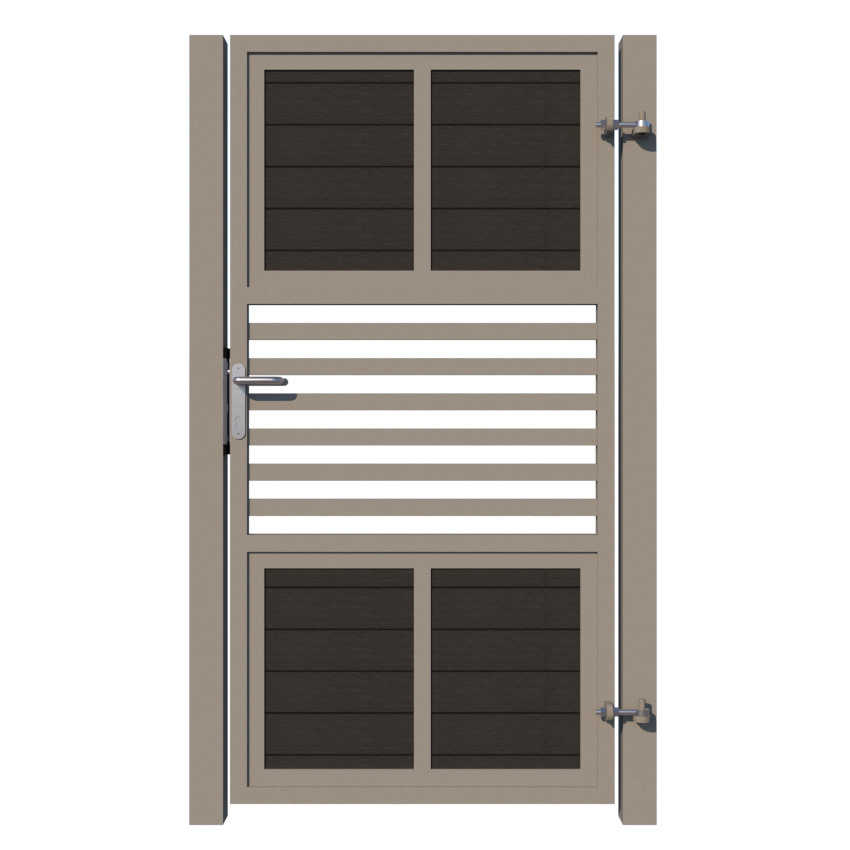

Modern Gate - Composite - The Westgate Granite (Anthracite)
Modern Gate - Composite - The Westgate Stone
Modern Gate - Composite - The Westgate 1 Oak
Modern Gate - Composite - The Westgate 3 Walnut
  • WIDTH*

    This is the actual width the gate will arrive. To calculate, take three horizontal measurements between existing posts/ pillars. Reduce measurement by 50mm (2") to allow for hinge and opening clearance.

    GATE HEIGHT*

    Taken to the highest point of the gate.


    SELECT HINGE SIDE*

    Looking towards the rear of the gate, would the hinges be on the left or right hand side?

    SELECT FRAME COLOUR (free with gate)*

    GLOSS OR MATT?

    Please enter RAL colour code.

    ENTER RAL COLOUR CODE*

    ADD LONG LIFE?

    Our long life system provides the ultimate protection against rust and chips. The gates are sand blasted after production then a zinc primer is applied followed by a smoother, thicker top coat.

    ADD LONG LIFE?

    Our long life system provides the ultimate protection against rust and chips. The gates are sand blasted after production then a zinc primer is applied followed by a smoother, thicker top coat.

    SELECT HANDLE COLOUR (free with gate)*

    SELECT POSTS

    Hanging or Receiving Post?*

    Base Plate Required *

    Free with Gate

    Both handle and adjustable hinges included free of charge with each gate.

  • Add automation to your pedestrian/ side gate. Neatly mounted to the top corner of the gate. Provides easy access to your area with the benefit of adding additional security when used with an electronic mag lock. 24v system capable of opening gates up to 1.2m (4ft) wide - call to order if over 1.2m wide)

    Please note: No handles/ locks are needed if adding automation so will therefore not be included.

    Download Manual

    OTHER CUSTOMERS ALSO PURCHASED

     *

  • Select Colour*

    Reset options
Check your eligibility

Fast check - won't affect your credit rating.

Eco friendly composite side gate, the Westgate. Constructed from 60% bamboo (FSC 100% Certified) and 40% recycled High Density Polyethylene, environmentally gentle bonding agent, additives and tint. Saving these materials from landfill, giving them value and recycling them into a long life product, provides a harmonious solution to sustainable living all set within a deep metal frame using UK steel to produce an extremely durable and low maintenance gate.

0800 6124 965

Advice? Call our team today

  • no trees used icon No trees
  • No need to paint icon No need to paint
  • eco-friendly composite gates - 80x80 Eco-friendly
  • Maximum durability
  • Made in the UK

Description

COMPOSITE SIDE GATES – THE WESTGATE:

Eco friendly composite side/ pedestrian gate. Constructed from 60% bamboo (FSC 100% Certified) and 40% recycled High Density Polyethylene, environmentally gentle bonding agent, additives and tint. Saving these materials from landfill, giving them value and recycling them into a long life product, provides a harmonious solution to sustainable living all set within a deep metal box frame using UK steel to produce an extremely durable and low maintenance side gate. If you would like to order a free sample set of our composite cladding, please see here.

Not only are composite side gates better for the environment, you’ll never have to worry about staining or treating it ever again…just simply hose the gate down!

Ultimate Strength and Durability:

Manufactured by hand in the UK using our “Premium Frame” system. Deep 40mm x 40mm metal box section with thick 15mm x 30mm rear structural bars. This combined with the thickness and strength of the composite cladding creates a gate that is built to last.

Low (nearly no) Maintenance:

Save time and money with never having to paint your gate again! No annual treatment required. Simply wash down the composite with warm soapy water and rinse to have your gate looking like new again.


Included with the Gate:

  • Powder coated frame (in black, anthracite grey or white – optional extra to colour match with the cladding)
  • Locinox lock and handle, wall hinge plates and adjustable eye bolts.

Available Sizes:

  • Width: from 2ft to 4ft 6″
  • Height: from 5ft to 6ft 6″- taken to the highest point of the gate. For lower height gates see Composite Garden Gates.
  • Made to Measure – all gates online can be purchased to the nearest inch, if you do require a more precise size, please contact us. (Unlike others – there is NO additional cost for bespoke, we simply base price on the next size!).

Calculating Side Gate Size:

  • Take three measurements between existing posts/ pillars – top, middle and bottom (as below).
  • Take the smallest of the three widths and reduce as follows: (depending on gate set up)

Option 1: Gate hanging on the rear of posts/ pillars. Main advantage of this set up is the reduced gap that is visible between the gate edge and post.

Calculate-width-of-metal-framed-garden-or-side-gateTo calculate gate width: Take the lowest measurement and reduce by 50mm (2″).


Option 2: Gate mounted between existing posts/ pillars.

Calculate-width-of-metal-framed-garden-or-side-gate-2To calculate gate width: Take the lowest measurement and reduce by 100mm (4″).

For further information, please call our sales team direct on 0800 6124 965.

Frequently Asked Questions

How to Measure

Calculating gate width with existing pillars or posts in place.

Take THREE measurements between the pillars/ posts. Across the top, middle and bottom. Make a note of the SMALLEST measurement.

Measure garden or side gates

Calculate width of metal framed garden or side gate

Gates to opens inwards towards property. Hinges mounted on rear of post/ pillar. Back edge of gate will be flush with the rear face of post/ pillar.

REDUCE 50mm (or 2″) from your lowest measurement.


Calculate width of metal framed garden or side gate

This set up example would be used if placing the gate in an alley way or similar. The allowance on the hinge side is greater and does create a visible see through section.

Reduce 100mm (or 4″) from your lowest measurement.


Calculate width of metal framed garden or side gate

Alternative option if placing gate within two walls would be to mount a post to the wall. This set up would reduce the visible gap down the hinge side.

Reduce 50mm (2″) from your lowest measurement.


Specification

Produced using our “Premium” frame system. The depth, thickness and quality of materials used in the construction of metal framed composite gates is a key factor on how the gate will look and perform. We only use the finest steel that’s thicker than many of our competitors. This ultimately produces a long lasting gate that really does “make an entrance”.

GATE MATERIAL
FRAME 40mm x 40mm
REAR BRACING 30mm x 15mm Structural Bars
COMPOSITE 60% Bamboo (100% FSC) and 40% Recycled High Density Polyethylene
HANDLE Key Lock and Handle Included
BOARD SIZE Depth 20mm x 200mm
HANDCRAFTED Made in the UK
SIZE Bespoke Available

Delivery

All products are made on order. As such, delivery times can go up and down depending on order volume. We delivery across the whole of the UK (mainland only – please call if Isle of Wight etc).

Wooden Gates (inc Garage Doors): Week commencing 8th of Janurary. (If adding a stain or paint finish, please allow a further 5 days.)

Composite Gates: Week commencing 22nd of January.

Metal and Metal Infill Gates: Week commencing 22nd of January.

Metal Railings and Ballustrades: Week commencing 22nd of January.

Fence Panels: 7 to 14 days

Accessories (automation kits, intercoms etc): 1 to 2 working days.

This is a week commencing date and can therefore be any day from the 22nd till the 29th of Janurary. For a more accurate time, please call our team on 0800 6124 965.

Need it faster? Call our team to discuss our Express Service. We can provide wooden gates, unstained in as little as 5 days.

DELIVERY CHARGES:

SPECIAL OFFER: Free Delivery on orders over £750 – save up to £199

  • Garden Gates: £19
  • Side/ Pedestrian Gates: £29
  • Fence Panels & Railings: £29 (one off charge not per panel)
  • Driveway Gates (softwood): £49
  • Driveway Gates (Hardwood): £99
  • Metal Framed Driveway Gates: £199
  • Sliding Gates: £199
  • Sliding Gate Kit (if purchased without a gate): £99

What's included with the gate?

This gate comes complete with:

  • Lockable handle (3x keys included)
  • Adjustable hinges
  • Choice of frame colour

What is "Long Life" finish?

Our long life system provides the ultimate protection against rust and chips. The gates are sand blasted after production then a zinc primer is applied followed by a smoother, thicker top coat.

Our standard finish will scratch and chip easier resulting in more maintenance and a higher risk of rust spots forming.

Your gate...your colour! How do I select RAL code?

We are able to paint any gate in any RAL colour. RAL colours are coded so by providing us with the RAL code we can finish your gate to your chosen colour.

Do see all the RAL colours and codes…see https://www.ralcolorchart.com/

How do I maintain the gate?

Easily! Simply wash your composite gate down with warm, soapy water and rinse off. Any chips to the frame can be touched up using a paint pen.

Composite gates are the easiest material to maintain…no need for painting or staining.

DIY Installation

All of our gates can be installed by any competent DIY’er. We recommend professional installation if having gates that are automated (electric).

See here for the installation guide.

Useful Guides

  • How to Measure Guide
  • How to Fit Guide
Composite Gates Boards Description 1
Composite Gates Boards Description

Choice of Composite

Granite - Anthracite Composite
Stone Grey Composite
Oak Composite Cladding Boards
Walnut Composite Boards

We only use premium composite boards.
Request a Free sample box

Added Security

Fully fitted Locinox 40 security handle and lock system. Supplied with 3 keys and available in black or chrome.

Insert Lock with 100% stainless steel mechanism. The Stainless steel and adjustable self-latching bolt combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open.

  • Lock mechanism with cover plate against dirt penetration
  • Patented “Click-It” system makes tapping tread in the profile unnecessary
  • Key-operated self-latching bolt
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Easy left or right changing of the self-latching daybolt
  • Stainless steel hook for secure anchoring
  • Compatible with all Europrofile cylinders
Black handle and lock for metal side gate
Chrome handle and lock for metal side gate
